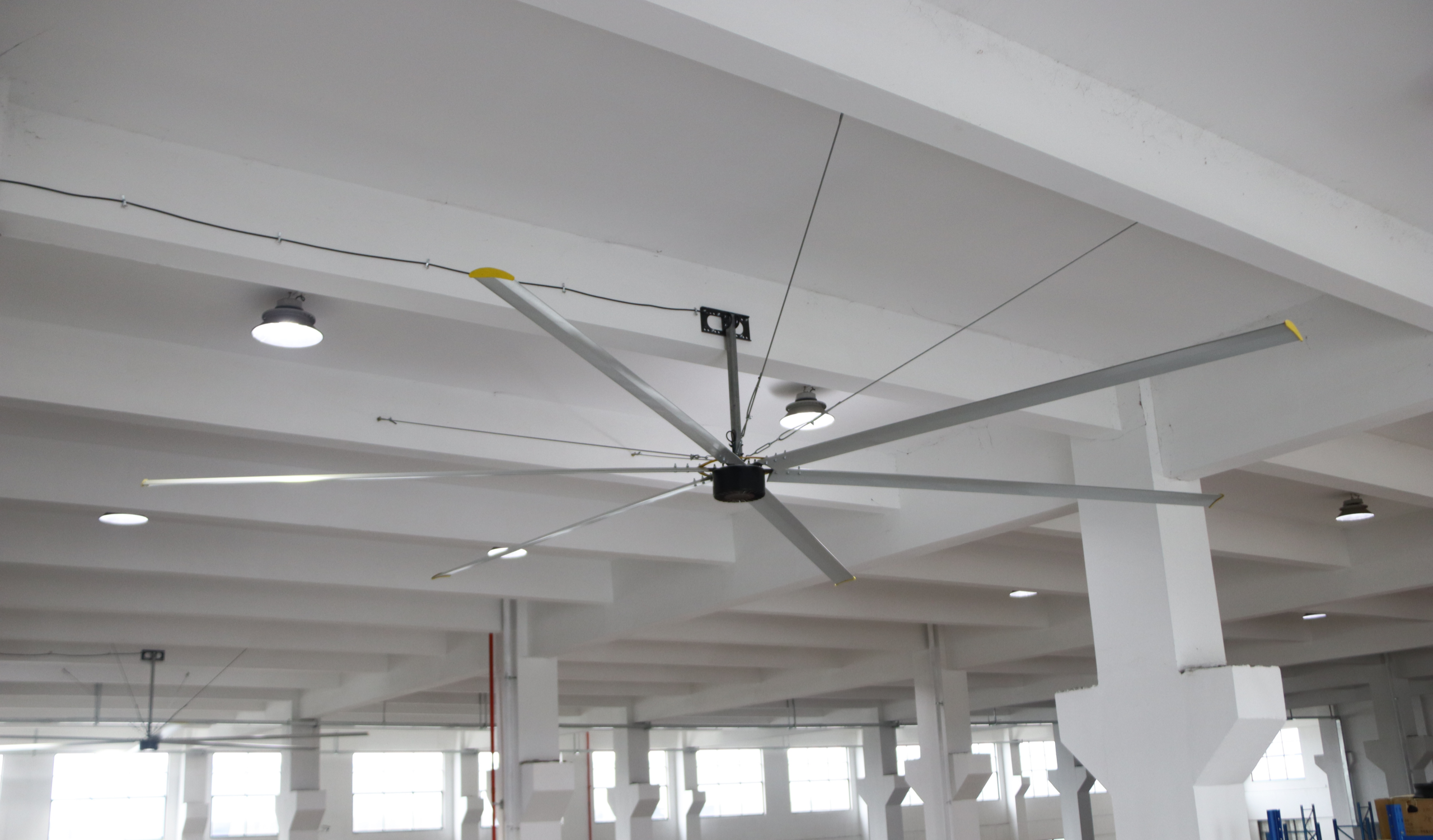

CZJB-FS730 industrial ceiling fan utilizes a high-performance permanent magnet synchronous motor and planetary reduction mechanism, resulting in low current, high torque, and stable operation. A single unit can cover a 1,200 square meter area, promoting wide-area air circulation and effectively reducing perceived temperature by 5–8°C, achieving both energy savings and comfortable ventilation.
Rated Voltage：
Rated Power：
Rated Current：
Diameter：
Max Speed：
Air Volume：
Coverage Area：
Noise Grade：
Number of blades：
Weight：
AC380V
2000W
3A
6.1m/7.3m/8m
55rpm
14900m³
1200㎡
≤55dB
5/6/8pcs
115kg
Highly Efficient and Energy-Saving
Powered by a permanent magnet motor, it has an energy efficiency of 92% and saves up to 30% of electricity.
Powerful air output
300Nm high torque and 55/80rpm high speed; Stable output and strong continuous air supply capability.
Intelligent Control Compatibility
Supports a variety of speed controllers, facilitating fan speed adjustment and remote centralized control.
Stable operation in high-temperature and humid environments
Adaptable to temperatures up to 85°C and humidity up to 95%,
providing high reliability.
Maintenance-free design
No carbon brushes, no belt drive, and no internal wear structure in the motor, making it virtually maintenance-free.
